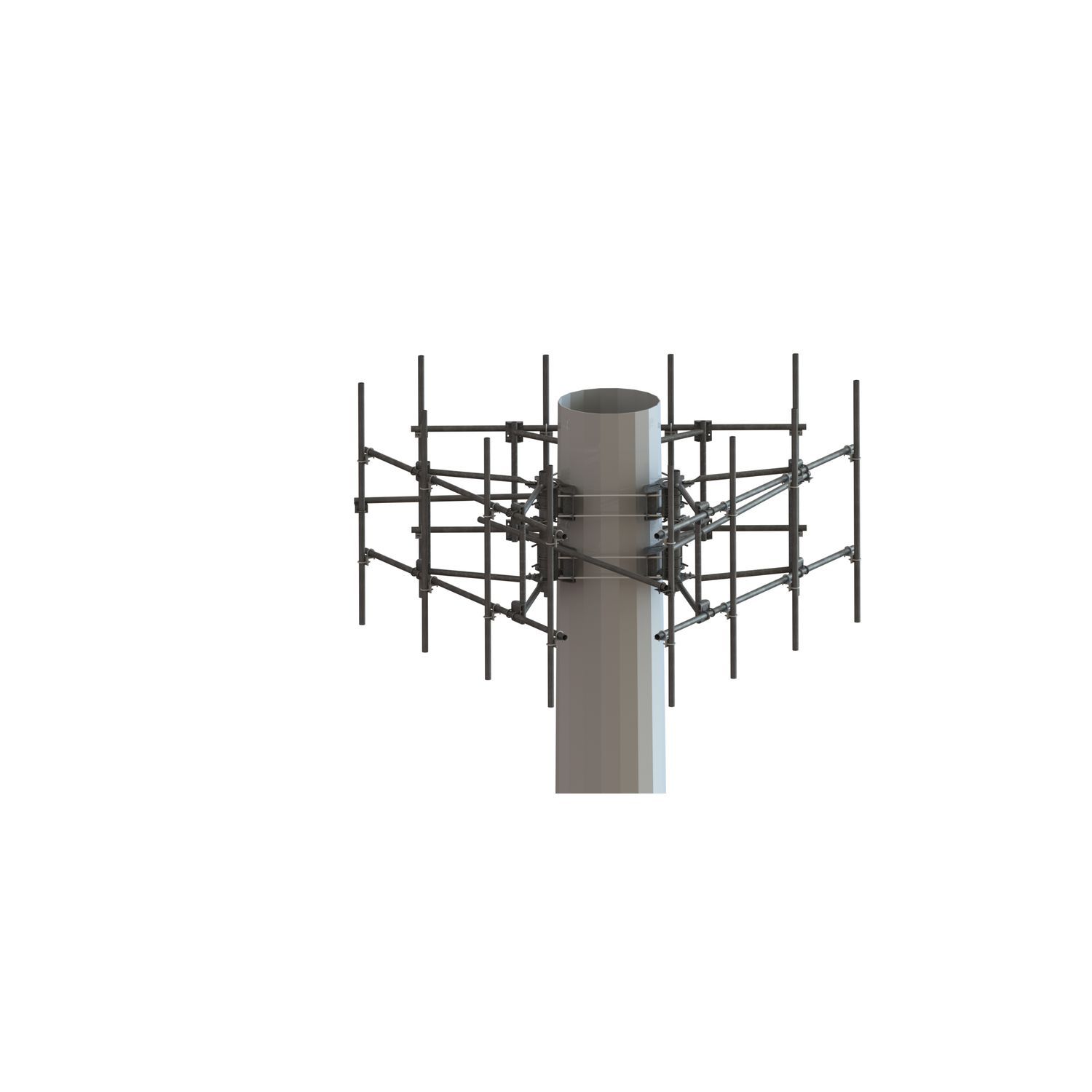

G2 Series High Capacity 3-Sector Monopole Frame, 12 ft 6 in face, includes twelve 96 in antenna pipes plus six 96 in RRU pipes

G2 Series High Capacity 3-Sector Monopole Frame, 12 ft 6 in face, includes twelve 96 in antenna pipes plus six 96 in RRU pipes

Part#: MTC3752M3

G2 Series High Capacity 3-Sector Monopole Frame, 12 ft 6 in face, includes twelve 96 in antenna pipes plus six 96 in RRU pipes

G2 Series High Capacity 3-Sector Monopole Frame, 12 ft 6 in face, includes twelve 96 in antenna pipes plus six 96 in RRU pipes
Manufacturer COMMSCOPE TECH. - STEEL
    • Height: 2,438.4 mm   |   96 in
    • Face Width: 3.81 m   |   12.5 ft
    • Width: 3810 mm   |   150 in
    • Pipe Length: 2,438.4 mm   |   96 in
    • Face Support Pipe Diameter: 60.96 mm   |   2.4 in
    • Mounting Diameter, maximum: 1270 mm   |   50 in
    • Mounting Diameter, minimum: 304.8 mm   |   12 in
    • Pipe Outer Diameter: 60.96 mm   |   2.4 in
    • Stand-off Distance: 1,117.6 mm   |   44 in

    Specifications

    Color Galvanized
    Weight 1949 lb.
    PackageQuantity 1
    Manufacturer COMMSCOPE TECH. - STEEL
    Material Galvanized Steel
    Width 150"
    Height 96"
    MTC3752M3.pdf
