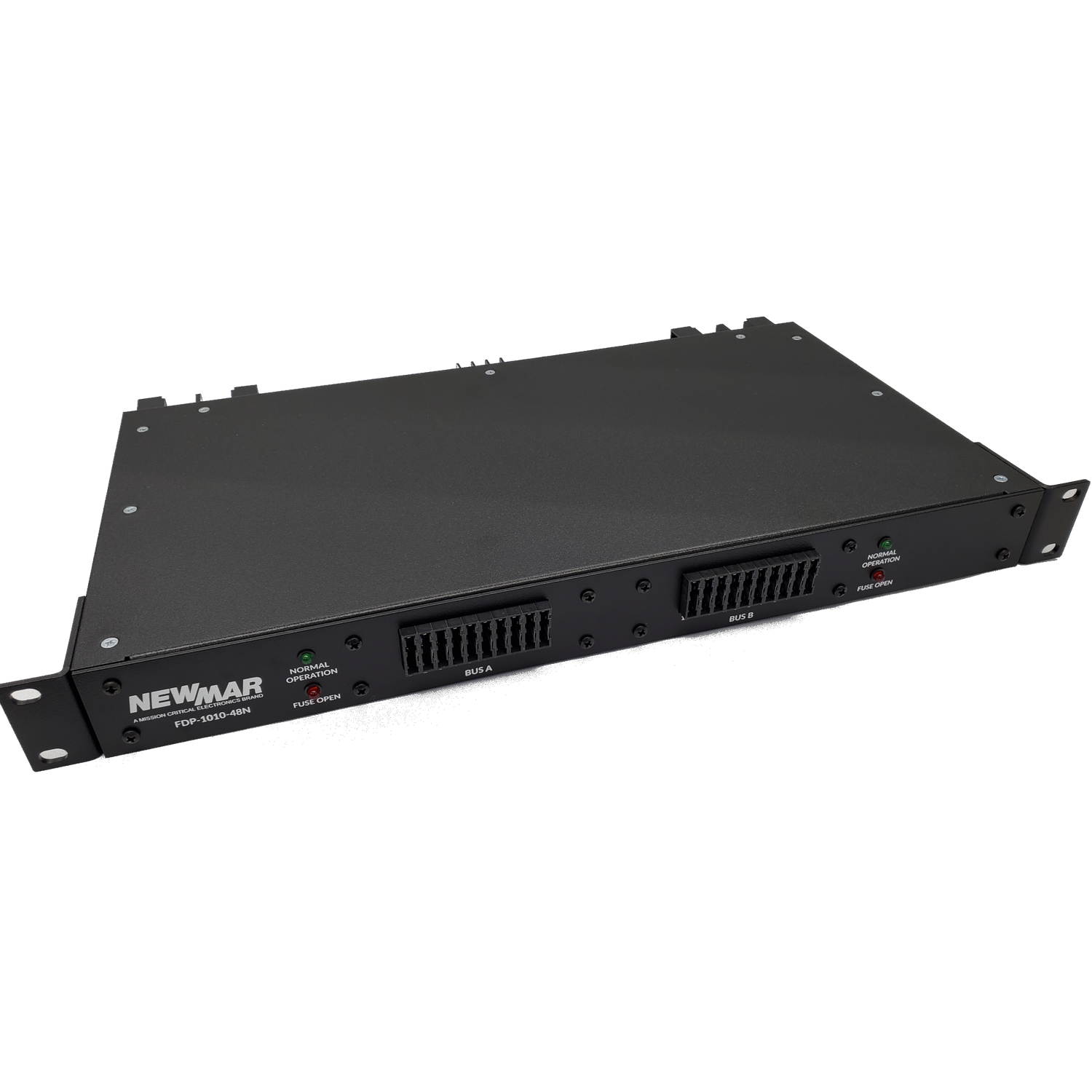

Fuse Distribution Panel
Protect your investment and safely power your systems with Newmar’s new Fuse Distribution Panel!
These fuse panels are ideal for DC distribution to low power loads in 48 volt positive ground network applications and provide enhanced system reliability via dual input buses, which allow configuration with redundant power sources.
Each input bus accommodates 10 GMT output fuses in ratings up to 15 amps. Front panel LEDs indicate normal operation, fuse failure mode, as well as a user configured external alarm signal.
KEY FEATURES
• GMT Fuse
• Form “C” alarm contacts
• 1RU (1.75”) in height will configure to 19” or 23” rack mounting
MECHANICAL REQUIREMENTS
• Steel case painted flat black with white graphics
• Mounting ears provided for 19”
• 1 RU (1.75”), can be zero clearance mounted directly adjacent to other equipment
FRONT PANEL DETAILS
• LED status indicators: Normal Operation, Fuse Alarm, and External Alarm
• Easy accessible fuse blocks
• Spare fuse holder
ALARMS
• Form “C” alarm contacts for each bus
• External ground input alarm (bay or rack alarms)
Contact a Primus Sales representative for more information at 800-435-1636 or
[email protected].
